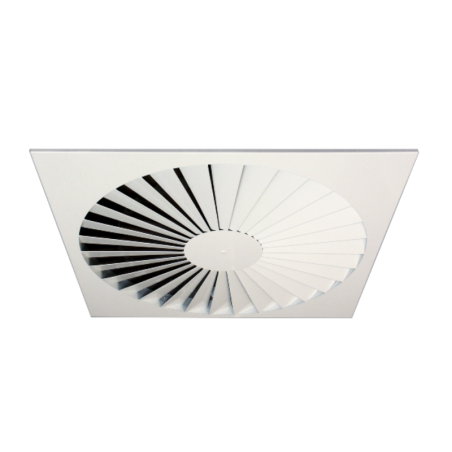

Swirl diffusers

The RXO-S series of rotary diffusers are designed for air supply in air conditioning and ventilation systems.

– .../T15/ False ceiling panel 15 mm profile with angled borders.
– .../T24/ False ceiling panel 24 mm profile with angled borders.

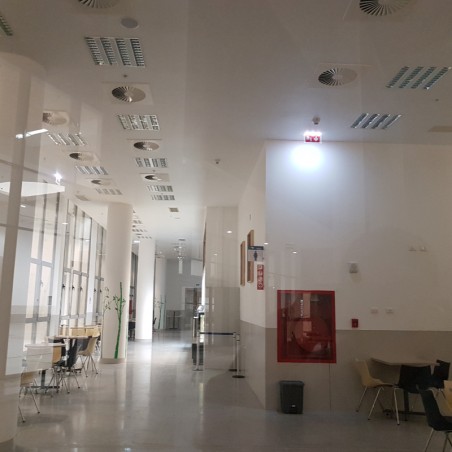

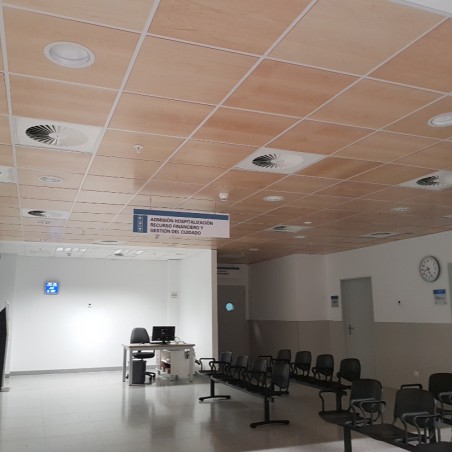

- – Installation in false ceilings or suspended ceilings
- – Suitable for installations at heights between 2.6 and 4 metres.
- – For integration into modular ceilings of 600-625 -675 mm.
Product advantages:
- – Rotary diffusion with a high induction index
- – Classic design and technical performance.
- – The particular shape of its openings guarantees a uniform air flow throughout the entire passage section.
Accessories:
- – PMXO: Crossbar suitable for mounting in false ceiling with rectangular duct.
- – BOXSTAR: Pyramidal plenum box with a lateral connection.
- – ...-R: Air flow damper in the spigot.
- – .../S/ Upper connection.
- – .../AIS/ Thermal insulation inside.
- – BOXTHERM: Plenum box thermo-acoustically insulated with a lateral circular connection.
- – ...-R: Plenum box with a flow damper in the spigot.
Fixing:
- – 1) Connection into the crossbar or to the plenum box by means of central screw.
