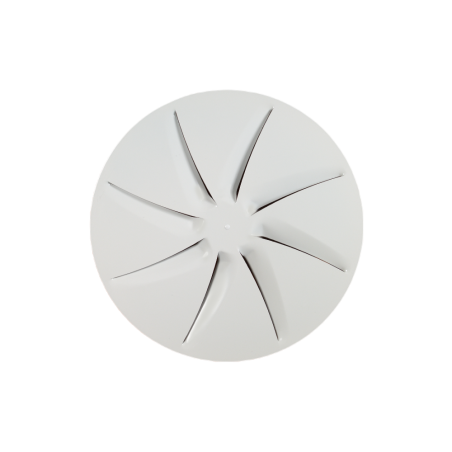

OTO-C

Swirl diffusers

  • The OTO-C series of swirl diffusers are designed for air supply in air conditioning and ventilation systems.

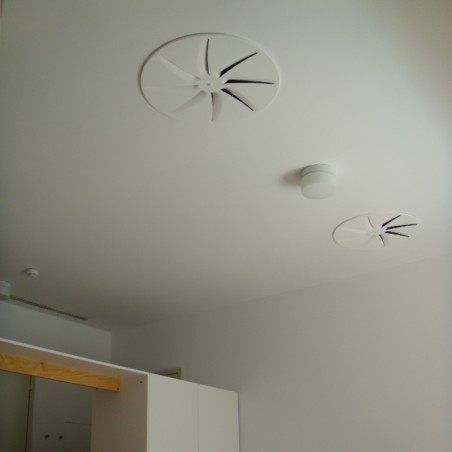

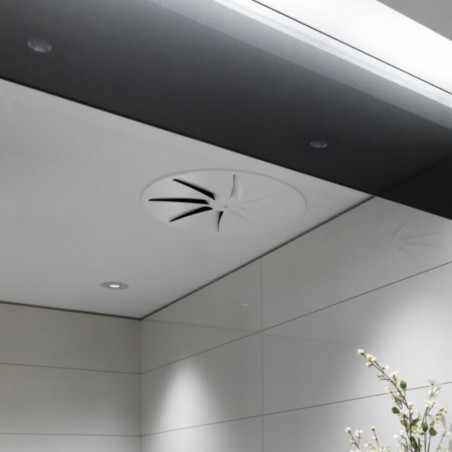

  • – Installation in false ceilings or suspended ceilings.
  • – Suitable for installations at heights between 2.6 and 4 metres.

Product advantages:

  • – Swirl diffusion with a high induction index.
  • – Cutting-edge design and technical performance.
  • – The particular shape of its openings guarantees a uniform air flow throughout the entire passage section.

Accessories:

  • – POX/L/ Cylindrical plenum box with a lateral circular connection. Constructed from galvanized steel.
  • – .../S/ Upper circular connection.
  • – ...-R: Air flow damper in the spigot (COR required).
  • – .../AIS/ Thermal insulation inside. Reaction to fire classification B-s1,d0 EN 13501-1.
  • – .../RAL/ Plenum box painted RAL colours.
  • – COR: Cords to regulate the damper type-R from the face of the diffuser.
  • – PMXO: Crossbar for mounting in false ceiling with rectangular duct.

Fixing:

  • – 1) Connection into the crossbar or to the plenum box by means of central screw.
