FTR

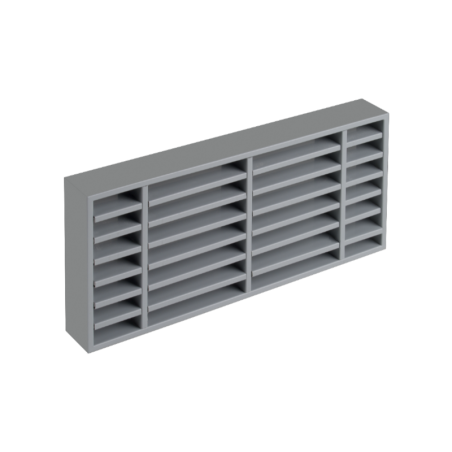

Intumescent Transit Grilles

  • Intumescent louvers tested according to the general requirements of EN 1364-5. Meets fire integrity and thermal insulation criteria for a period of 60/120 minutes according to EN 1364-5 test standard. FTR louvers allow natural ventilation through the compartmentalization elements. They expand at a temperature of 120ºC, sealing the ventilation gap.

Accessories:

  • – TM: Expanding filler tube 310 ml.
  • – DMT-AR (T): Return grille for ventilation, made of aluminium with fixed blades at 45º. Fixing by visible screws.

Fixing:

  • – 1) FTR mounting into the wall opening for a resistance EI 60.
  • – 2) FTR + 2 DMT-AR (T) mounting into the wall opening for a resistance EI 120.
