AXO-TWIN
Ceiling Diffusers
- AXO-TWIN is a diffuser and plenum box specially designed to achieve greater comfort and improved energy efficiency in VAV installations.
- – .../T15/ False ceiling panel 15 mm profile with angled borders.
- – .../T24/ False ceiling panel 24 mm profile with angled borders.
- – .../AIS/ Thermally insulated plenum box.
- – For all types of installations where there are variations in flow rate.
- – Installation in false ceilings or suspended ceilings.
- – Frontally accessible version without tools using the KLIN system.
- – Suitable for installations at heights between 2.6 and 4 metres.
Product advantages:

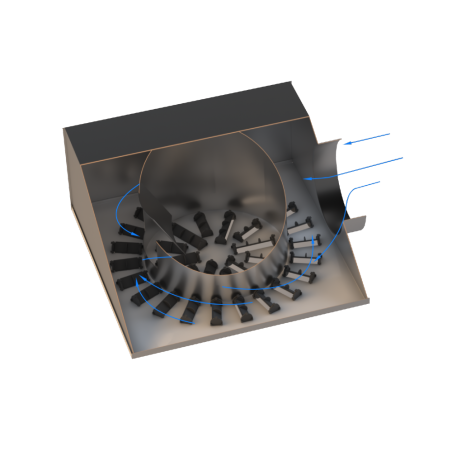

- – The innovative double-chamber plenum box allows a high induction index to be maintained throughout the diffuser's flow range.
- – Autonomous system without the need for external energy.
- – Classic design and performance technical.
- – KLIN version to facilitate compliance with the maintenance requirements of the Regulations for Thermal Installations in Buildings.
Fixing:
- – 1) Diffuser attached to the plenum by means of a central screw. Plenum box with brackets for ceiling suspension.
- – 2) KLIN model: framed of the diffuser attached to plenum by rivets. Plenum box with suspension brackets the ceiling.
