Ceiling diffusers

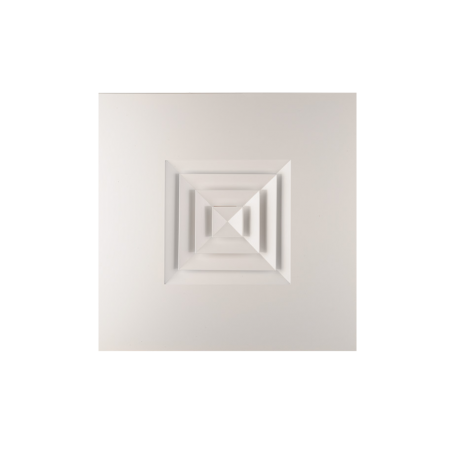

The square diffusers of the DBQ-MOD series are designed for air supply in air conditioning and ventilation installations.
.../T15/ False ceiling panel 15 mm profile with angled borders.
.../T24/ False ceiling panel 24 mm profile with angled borders.
- – Classic design and technical performance.
- – Installation in false ceiling or suspended from the ceiling.
- – Suitable for installations at heights between 2.6 and 4 metres.
Product advantages:
- – Square geometric shape for integration into the aesthetics of the premises.
- – Removable inner section for easy installation and maintenance.
Accessories:
- – R3Q: Flap damper, manually operated. Compatible with (O) fixing.
- – SPQ: Opposed blades volume damper from black electro-zinc steel. Compatible with (D) fixing.
- – ADPQ: Adapter to circular connection. Riveted directly to the diffuser. Compatible with (D) fixing.
- – ...-R: Air flow damper in the spigot.
- – .../L/: Lateral connection.
- – .../AIS/: Thermal insulation inside.
Fixing:
- – 1) Suspended at the false ceiling. To replace a false ceiling plate.
