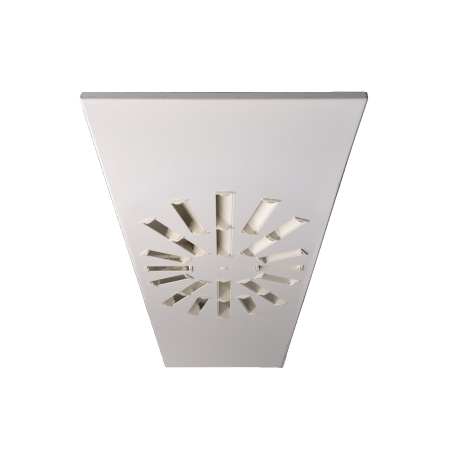

AXO-R

Swirl diffusers

  • The AXO-R series of swirl diffusers are designed for air supply in air conditioning and ventilation systems.
  • – Swirl air supply with Coanda effect.
  • – Mounting on ceiling or modular ceiling.
  • – Individually adjustable fins in radial arrangement.
  • – Suitable for installations at heights between 2.6 and 4 metres.

Product advantages:

  • – Integration into clip-in metal ceilings.
  • – Air supply with a high induction rate and reduced stratification.
  • – Adjustable fin angle to adapt the diffuser to different architectures.
  • – Classic design and performance technical.

Accessories:

    • – PMXO-300: Crossbar suitable for mounting in false ceiling with rectangular duct.
    • – PLAR/L/ Plenum box with lateral connection.
    • – .../S/ Upper connection.
    • – ...-R: Air flow damper in the spigot.
    • – .../AIS/ Thermal insulation inside.

      Fixing:

          • – 1) Connection into the crossbar or to the plenum by means of central screw.
