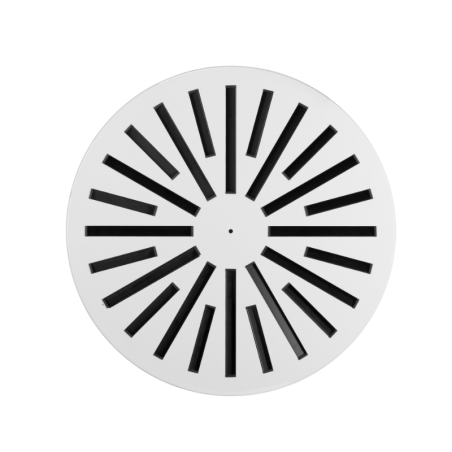

AXO-C

Swirl diffusers

  • The AXO-C series of swirl diffusers are designed for air supply in air conditioning and ventilation systems.
  • – Swirl air supply with Coanda effect.
  • – Mounting on ceiling or modular ceiling.
  • – Individually adjustable fins in radial arrangement.
  • – Suitable for installations at heights between 2.6 and 4 metres.

Product advantages:

  • – Air supply with a high induction rate and reduced stratification.
  • – Adjustable fin angle to adapt the diffuser to different architectures.
  • – Classic design and technical performance.

Accessories:

      • – POX/L/ Cylindrical plenum box with a lateral circular connection. Constructed from galvanized steel.
      • – .../S/ Upper circular connection.
      • – ...-R: Air flow damper in the spigot (COR required).
      • – .../AIS/ Thermal insulation inside. Reaction to fire classification Bs1, d0 EN 13501-1.

Fixing:

    • – 1) Connection into the crossbar or to the plenum box by means of central screw.
