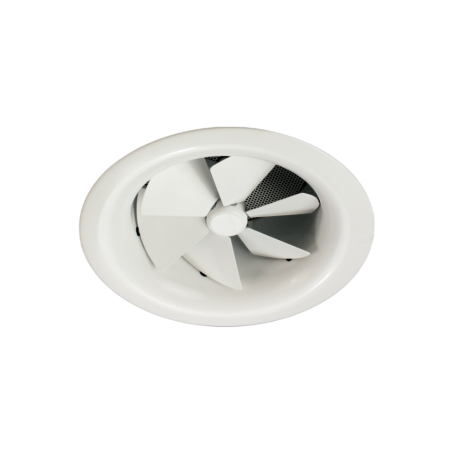

AX6-MA

Adjustable Diffusers

  • The AX6-MA series of rotating diffusers are designed for use in air conditioning, ventilation and heating.
  • – Mounting on ceiling or modular ceiling.
  • – Suitable for supplying air in industrial or comfort premises.
  • – For premises with a height of 2.6 metres and a temperature differential of up to 15ºC.

Product advantages:

  • – Easily adaptable to different spaces.
  • – Rotational diffusion of the air stream, obtaining a high induction index and reducing stratification.
  • – Variable diffusion by regulating the angle of the blades' impulse, varying from horizontal projection to vertical projection.

Accessories:

  • – GLB...: Siemens actuators.
  • – NM...: Belimo actuators.
  • – CH6: Protection grille suitable for sport installations.
  • – PLX6: Plenum with lateral connection.
  • – .../M/: Access door for servomotor.
  • – .../S/: Upper connection.
  • – .../AIS/: Thermal insulation inside.

Fixing:

  • – 1) Connection into a circular metallic duct.
  • – 2) Connection into the plenum box by means of rivets to hang the whole from the ceiling.
